Siemens | Simatic TI 505 545-1102

Product Details

• Part Number 1 545-1102
• HTS 8542310000
• Additional Part Numbers TI5451102
• Country of Origin Japan

Product Description

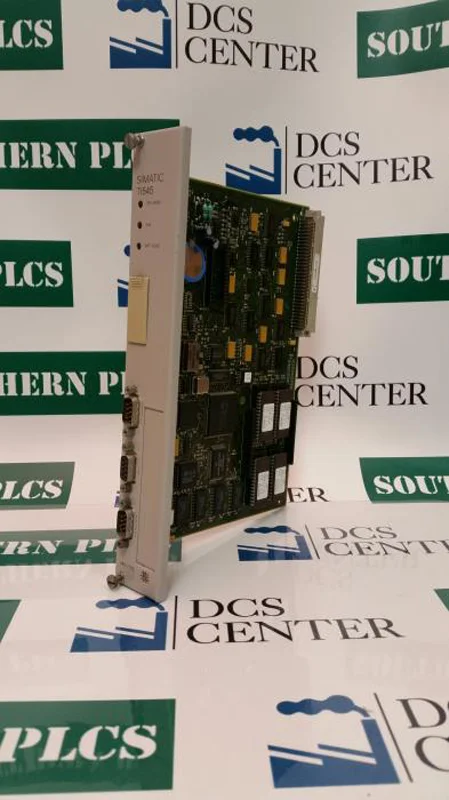

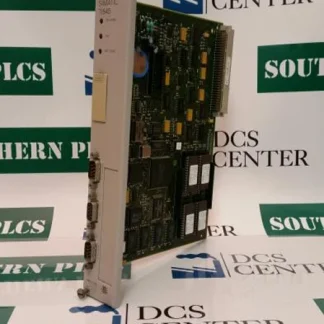

Within the Simatic TI 505 product line, Siemens 545-1102 serves as a TI CPU Module.

From a maintenance perspective, this type of module provides control execution within the automation architecture. Its responsibilities can include logic processing, data handling, communications, and coordination of connected subsystem resources. Maintenance planning should reference the installed hardware configuration.

The SIMATIC TI 505 family provides modular PLC control and I/O functions for established automation systems. This product supports the PLC modules role identified by the installed configuration. The original wiring and configuration records should guide application.

Country of origin is listed as Japan.

When this product is used for lifecycle support, technicians should confirm the installed revision, connection arrangement, and system assignment rather than assuming interchangeability with a similarly named module. System drawings should be consulted before replacement.

Product Documentation

• Part Notes

  2500-C200 Control Technology Inc.

  .

• Catalog Description

  Siemens Texas Instruments 545-1102 SIMATIC TI 505 Processor Module, 192 K bytes Memory, 1 x RS-232 Interface Port, 1 x I/O Interface Port, 1 x RS-422 Interface Port

• Common Part Typos 545-11O2, 545-1I02, 545-1l02, 545-I102, 545-l102, 5451102, 54511O2, 5451I02, 5451l02, 545I102, 545l102
