Siemens | Simatic S5 6AV3688-3ED13-0AX0

Product Details

• Part Number 1 6AV3688-3ED13-0AX0
• UPC 662643028270
• HTS 85371098
• Country of Origin Germany

Product Description

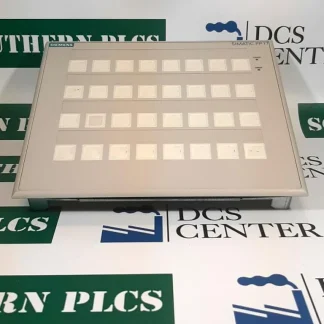

The product identified as Siemens 6AV3688-3ED13-0AX0 is a Push Button Panel in the Simatic S5 hardware family.

Within the process-control arrangement, its role is mechanical rather than computational: it provides the panel, rack, mounting, or closure function associated with the installed control-system assembly. Application should remain aligned with the documented system design.

SIMATIC S5 is a modular PLC platform used in established machine and process-control installations. This product supports the PLC modules function assigned within the compatible S5 hardware configuration. Installation should follow the control node's approved hardware records.

Country of origin is listed as Germany.

For ongoing lifecycle support, proper application depends on matching the product to the original control-system design, including its physical position, electrical connections, and configured relationship with surrounding hardware. The product remains part of the broader control and signal-handling arrangement.

Product Documentation

• Part Notes

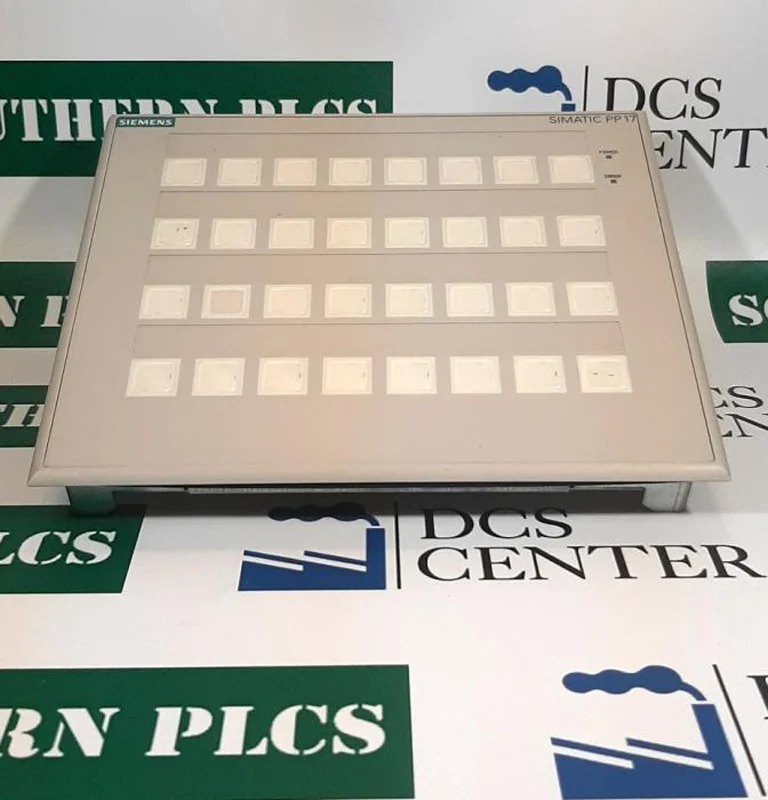

  SIEMENS HMI Push Button Panel PP17 II 32 short-stroke keys, 32 surface LEDs, 16 DI and 16 DO terminals PROFIBUS DP12

  Product was cancelled by Siemens 10.01.2022 without replacement

  Product was cancelled by Siemens 07.01.2017 without replacement

• Cancellation Notice

  Product was cancelled by Siemens 10.01.2022 without replacement

• Common Part Typos 6AV3688-3ED13-0AXO, 6AV3688-3ED13-OAX0, 6AV3688-3EDI3-0AX0, 6AV3688-3EDl3-0AX0, 6AV36883ED130AX0, 6AV36883ED130AXO, 6AV36883ED13OAX0, 6AV36883EDI30AX0, 6AV36883EDl30AX0
