Siemens | Simatic S7 6AV6542-0CC10-0AX0

Product Details

• Part Number 1 6AV6542-0CC10-0AX0
• HTS 8471410150
• Country of Origin Germany

Product Description

6AV6542-0CC10-0AX0 is identified by Siemens as an HMI Operator Panel within the Simatic S7 family.

For replacement planning, its role is to support local or system-level operator interaction within the associated control platform. Display, key, and connection features depend on the exact assembly. Selection should account for the intended surrounding hardware configuration.

Within an S7 installation, the exact hardware order number determines supported interfaces and configuration behavior. System and software compatibility should be checked before replacement. The plant's maintenance records should support final product selection.

Country of origin is listed as Germany.

In the signal path, this approach helps preserve the intended system function while keeping selection aligned with the documented ratings, capacity, and compatibility requirements. The surrounding rack and module arrangement should be reviewed before installation.

Product Documentation

• Part Notes

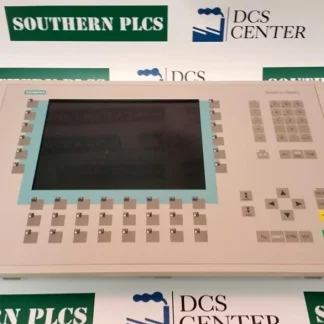

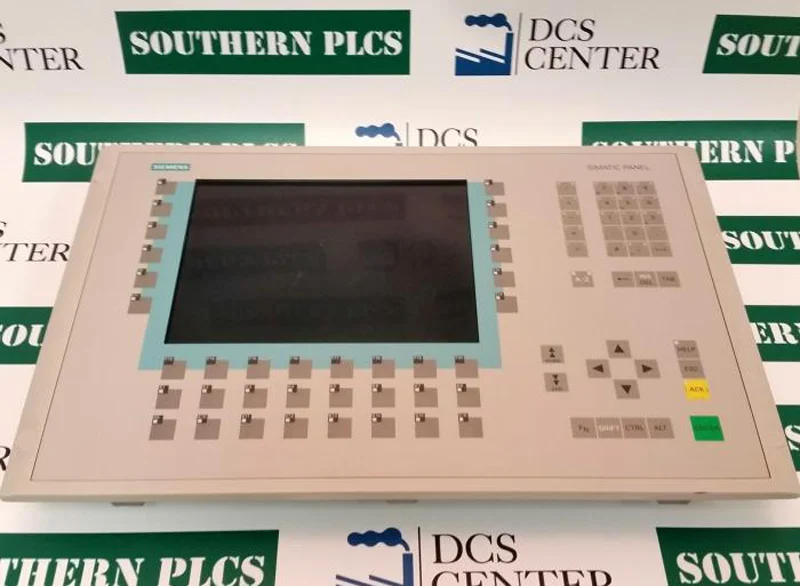

  Siemens 6AV6542-0CC10-0AX0 SIMATIC OP270 Operator Panel, Operator Interface Terminal, 10.4-inch, Color, Keypad, RISC 32-Bit CPU, 2MB Configuring Memory, 1 x 12 Mbit/s RS-422/485 Interface Port (MPI/DP/PPI), 1 x RS-232 (9-pin) Interface Port (PLC), 1 x RS-232 Interface Port (PC/Printer), 1 x CF Flash Slot, 1 x USB Port, 640x480 STN LCD with 256 Colors, 36 Function Keys (28 with LEDs), Windows CE Operating System, configurable with ProTool from v6.0 and higher

  Product was cancelled by Siemens without replacement

• Cancellation Notice

  Product was cancelled by Siemens without replacement

• Common Part Typos 6AV6542-0CC10-0AXO, 6AV6542-0CC10-OAX0, 6AV6542-0CC1O-0AX0, 6AV6542-0CCI0-0AX0, 6AV6542-0CCl0-0AX0, 6AV6542-OCC10-0AX0, 6AV65420CC100AX0, 6AV65420CC100AXO, 6AV65420CC10OAX0, 6AV65420CC1O0AX0, 6AV65420CCI00AX0, 6AV65420CCl00AX0, 6AV6542OCC100AX0
