Siemens | Simatic S7 6AV6545-0BC15-2AX0

Product Details

• Part Number 1 6AV6545-0BC15-2AX0
• HTS 85371098
• Country of Origin Germany

Product Description

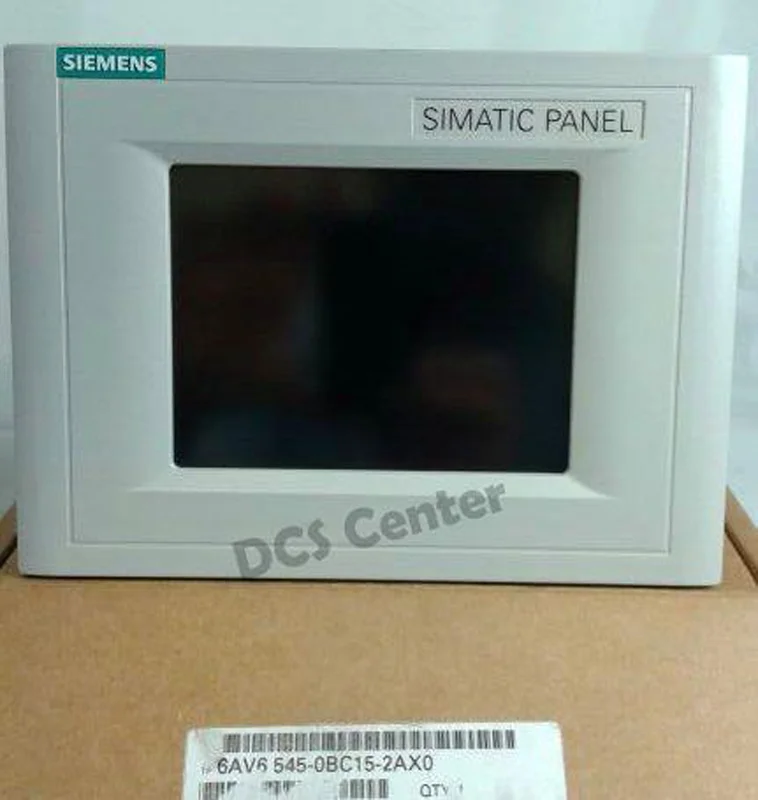

Siemens designates 6AV6545-0BC15-2AX0 as an HMI Touch Panel associated with the Simatic S7 control platform.

Mechanical system hardware establishes the physical mounting, organization, or protective arrangement required by compatible electronic modules and wiring assemblies. This is relevant where the installation calls for this specific component class.

SIMATIC S7 integrates programmable control, modular I/O, and industrial communication functions. This product belongs to the PLC modules layer of the installed S7 automation solution. The surrounding rack and module arrangement should be reviewed before installation.

Country of origin is listed as Germany.

For maintenance or replacement work, the exact module designation should be checked against the installed hardware, wiring records, and control-system documentation before the component is placed into service. The original equipment schedule should guide compatibility review.

Product Documentation

• Part Notes

  SIEMENS SIMATIC Touch Panel TP170B Color STN-Color-Display MPI/PROFIBUS DP interface Printer/RS232 interface Slot for CF card configurable with ProTool/Lite as of Version V5.2+SP2

  Product was cancelled by Siemens 04.01.2017

• Cancellation Notice

  Product was cancelled by Siemens 04.01.2017

• Common Part Typos 6AV6545-0BC15-2AXO, 6AV6545-0BCI5-2AX0, 6AV6545-0BCl5-2AX0, 6AV6545-OBC15-2AX0, 6AV65450BC152AX0, 6AV65450BC152AXO, 6AV65450BCI52AX0, 6AV65450BCl52AX0, 6AV6545OBC152AX0
