Siemens | Simatic S7 6AV6545-0CA10-0AX0

Product Details

• Part Number 1 6AV6545-0CA10-0AX0
• HTS 8528510000
• Country of Origin Germany

Product Description

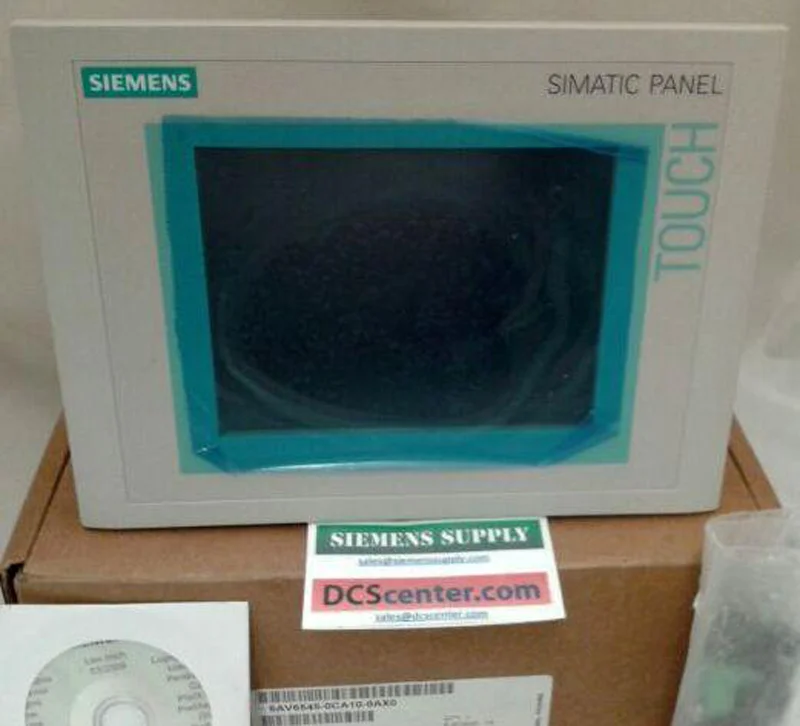

Within the Simatic S7 product line, Siemens 6AV6545-0CA10-0AX0 serves as an HMI Touch Panel.

From a maintenance perspective, this component supports the physical structure of the control installation, helping maintain the equipment layout and access arrangement defined for the platform. The product remains part of the broader control and signal-handling arrangement.

Within an S7 installation, the exact hardware order number determines supported interfaces and configuration behavior. System and software compatibility should be checked before replacement. The product remains part of the broader control and signal-handling arrangement.

Country of origin is listed as Germany.

When this product is used for lifecycle support, technicians should confirm the installed revision, connection arrangement, and system assignment rather than assuming interchangeability with a similarly named module. Service decisions should reflect the configured signal and control function.

Product Documentation

• Part Notes

  SIEMENS SIMATIC TP 270 Touch Panel, Operator Interface Terminal, 5.7-inch, Color, Touchscreen, 32 Bit RISC CPU, 2MB Configuring Memory, 1 x 12 Mbit/s RS-422/485 Interface Port (MPI/DP/PPI), 1 x RS-232 (9-pin) Interface Port (PLC), 1 x RS-232 Interface Port (PC/Printer), 1 x CF Flash Slot, 1 x USB Port, 320x240 STN LCD with 256 Colors, Windows CE Operating System, configurable with ProTool from v6.0 and higher, 24VDC Power

  Product was cancelled by Siemens

• Cancellation Notice

  Product was cancelled by Siemens

• Common Part Typos 6AV6545-0CA10-0AXO, 6AV6545-0CA10-OAX0, 6AV6545-0CA1O-0AX0, 6AV6545-0CAI0-0AX0, 6AV6545-0CAl0-0AX0, 6AV6545-OCA10-0AX0, 6AV65450CA100AX0, 6AV65450CA100AXO, 6AV65450CA10OAX0, 6AV65450CA1O0AX0, 6AV65450CAI00AX0, 6AV65450CAl00AX0, 6AV6545OCA100AX0
