Siemens | Simatic S7 6GK1543-1AA01

Product Details

• Part Number 1 6GK1543-1AA01
• UPC 662643183474
• HTS 85176200
• Country of Origin Germany

Product Description

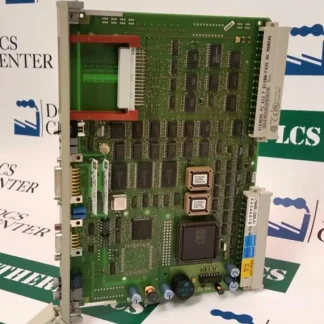

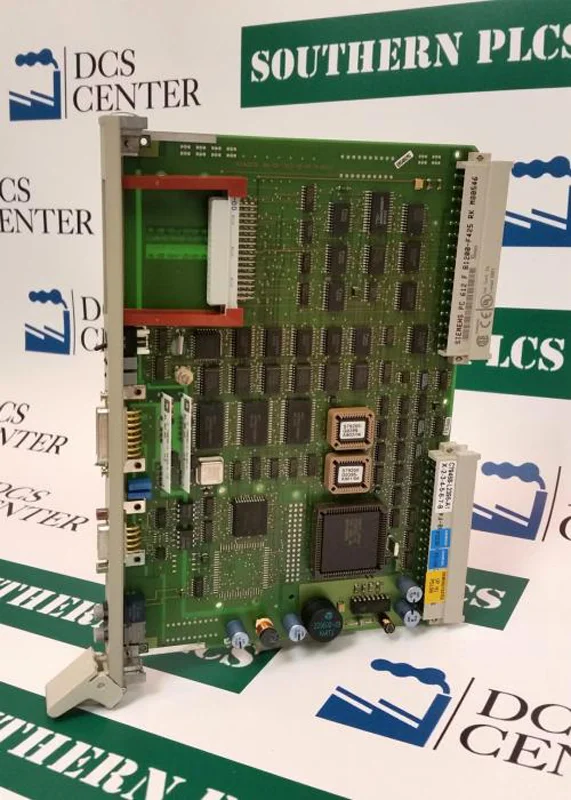

The product identified as Siemens 6GK1543-1AA01 is a Communications Processor in the Simatic S7 hardware family.

Processor and controller modules execute configured control functions, coordinate data from I/O and communication resources, and manage the operating sequence assigned to their control node. Final selection should be based on the plant's controlled-equipment records.

SIMATIC S7 integrates programmable control, modular I/O, and industrial communication functions. This product belongs to the PLC modules layer of the installed S7 automation solution. Application should remain aligned with the documented system design.

Country of origin is listed as Germany.

For maintenance or replacement work, the exact module designation should be checked against the installed hardware, wiring records, and control-system documentation before the component is placed into service. The original wiring and configuration records should guide application.

Product Documentation

• Specification PDF siemens-simatic-s5.pdf
• Part Notes

  SIEMENS SIMATIC NET CP 5431 FMS/DP Communications processor for Connection of SIMATIC S7-22X 115U/H, 135U, and 155U/H to PROFIBUS

  Product was cancelled by Siemens 10.01.2006 without replacement

• Cancellation Notice

  Product was cancelled by Siemens 10.01.2006 without replacement

• Common Part Typos 6GK1543-1AA0I, 6GK1543-1AA0l, 6GK1543-1AAO1, 6GK1543-IAA01, 6GK1543-lAA01, 6GK15431AA01, 6GK15431AA0I, 6GK15431AA0l, 6GK15431AAO1, 6GK1543IAA01, 6GK1543lAA01, 6GKI543-1AA01, 6GKI5431AA01, 6GKl543-1AA01, 6GKl5431AA01
