ABB | Bailey INFI 90 IMDSI14

Product Details

• Part Number 1 IMDSI14
• Part Number 2 YIMDSI14
• Part Number 3 RIMDSI14

Product Description

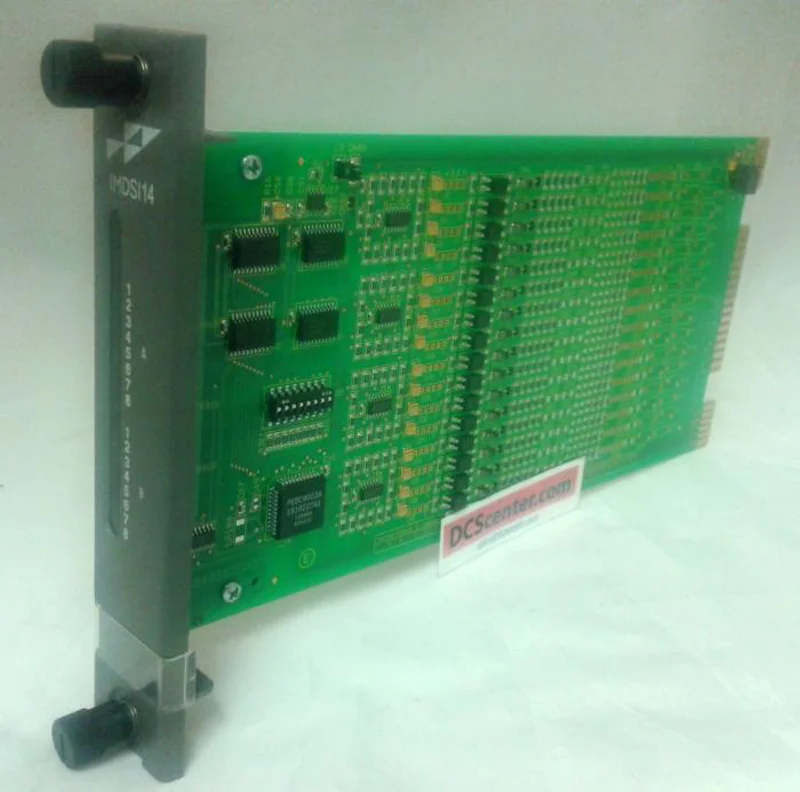

Within the Bailey Infi 90 product line, ABB IMDSI14 serves as a Digital Input Module.

From a maintenance perspective, a digital input module receives discrete on/off states from field contacts and devices, then makes those states available to the controller for monitoring, sequencing, alarms, and interlocks. Application details remain governed by the exact product revision.

As part of the Bailey Infi 90 family, this item belongs to an established DCS environment used for modular process control. Application should follow the system drawings and module assignments for the installation. The installed revision should be confirmed before the product is applied.

When this product is used for lifecycle support, technicians should confirm the installed revision, connection arrangement, and system assignment rather than assuming interchangeability with a similarly named module. Ratings and capacity should be verified against the exact model documentation.

Product Documentation

• Specification PDF abbbaileyinfi90.pdf
• Part Notes

  ASEA Brown Boveri, ABB, Bailey Controls, ABB Symphony Plus

  The ABB Symphony Plus SPDSI14 is a newer version of this original Bailey Infi 90 IMDSI14.

• Catalog Description

  IMDSI14 DIGITAL INPUT MODULE,16 INPUTS, 48 VDC

• Common Part Typos 1MDSI14, IMDS114, IMDSII4, IMDSIl4
