Emerson | DeltaV KJ3202X1-BA1

Product Details

• Part Number 1 KJ3202X1-BA1
• Part Number 3 12P2536X042
• Additional Part Numbers 12P2536X062

Product Description

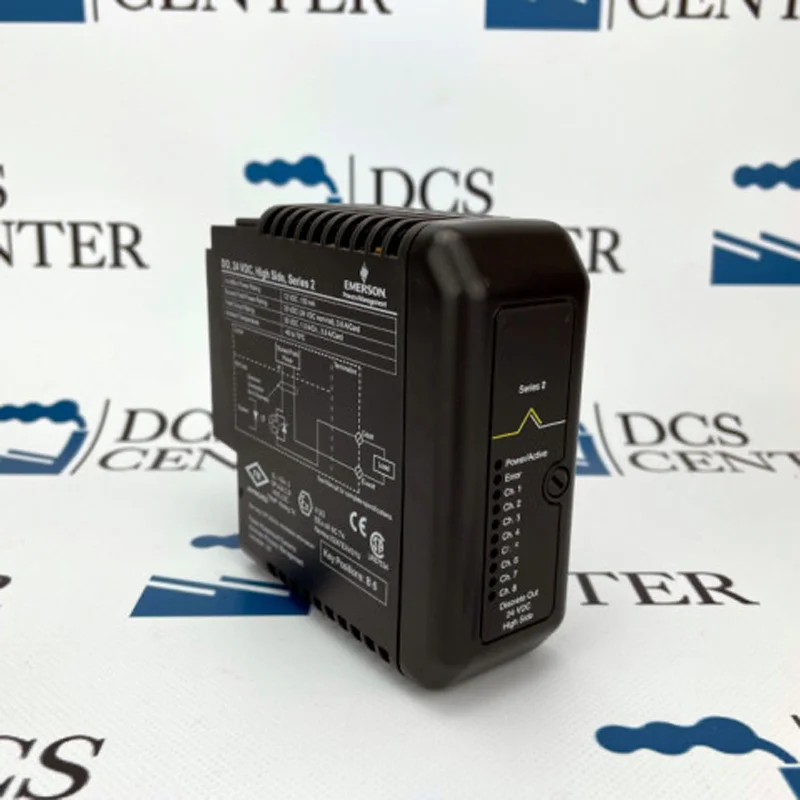

Emerson designates KJ3202X1-BA1 as a Discrete Output Card - High Side associated with the DeltaV control platform.

Within the control architecture, this product serves the equipment role stated in its description and should be selected by exact model identity rather than by appearance or a broadly similar name. Service decisions should reflect the configured signal and control function.

DeltaV provides the platform context for this product, while the control system modules classification identifies its broader automation role. Exact application should follow the installed system configuration. Installation should follow the control node's approved hardware records.

For ongoing lifecycle support, proper application depends on matching the product to the original control-system design, including its physical position, electrical connections, and configured relationship with surrounding hardware. Its role should remain distinct from that of similarly named assemblies.

Product Documentation

• Part Notes

  Emerson Process Management, Fisher Rosemount Systems,  Discrete Output Card KJ3202X1-BA1 uses Standard I/O Termination Block KJ4001X1-CA1

• Catalog Description

  Discrete Output Card, 8 channel, 24 VDC, High Side, KJ3202X1-BA11

• Common Part Typos KJ3202X1-BAI, KJ3202X1-BAl, KJ3202X1BA1, KJ3202X1BAI, KJ3202X1BAl, KJ3202XI-BA1, KJ3202XIBA1, KJ3202Xl-BA1, KJ3202XlBA1, KJ32O2X1-BA1, KJ32O2X1BA1
