ABB | Advant OCS TC501V150

Product Details

• Part Number 1 TC501V150
• Part Number 2 3BSC550038R3

Product Description

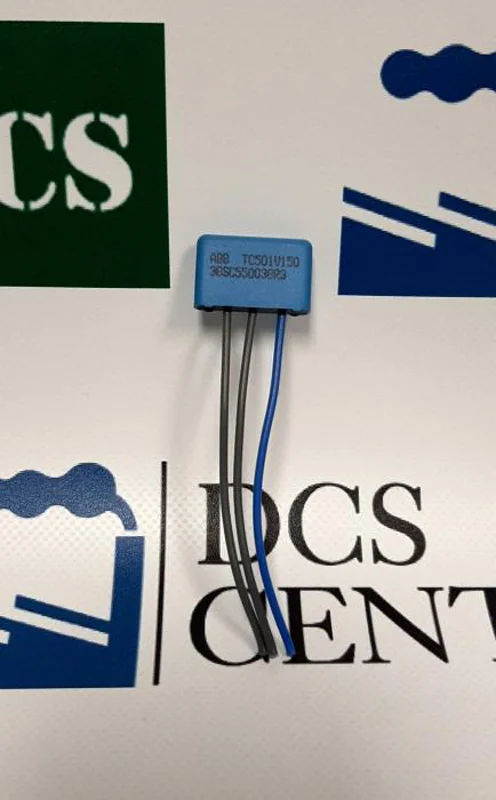

The product identified as ABB TC501V150 is a Termination Unit in the Advant OCS hardware family.

Within the process-control arrangement, termination hardware provides the organized transition between field wiring and associated I/O electronics. It supports installation, testing, and maintenance by keeping external connections aligned with the intended module interface. Existing connection and module records should guide replacement work.

Advant OCS provides the platform context for this product, while the control system modules classification identifies its broader automation role. Exact application should follow the installed system configuration. Exact operating details should be taken from the installed model documentation.

For maintenance or replacement work, the exact module designation should be checked against the installed hardware, wiring records, and control-system documentation before the component is placed into service. Selection should account for the intended surrounding hardware configuration.

Product Documentation

• Specification PDF abbadvant800xa.pdf
• Part Notes

  ASEA Brown Boveri - ABB Advant OCS

• Catalog Description

  TC501V150 Termination unit, 150 Ohm, S600 I/O speed meter input, max 50 kHz, ±13 mA, 24 V d.c. or 5 V d.c., detection of direction through second speed meter input, overspeeed trip logic with trip signal output via solid state 24 V d.c. and dry contact 60 V d.c., speed meter inputs and solid state output are individually opto-isolated.

• Common Part Typos TC501V15O, TC501VI50, TC501Vl50, TC50IV150, TC50lV150, TC5O1V150
